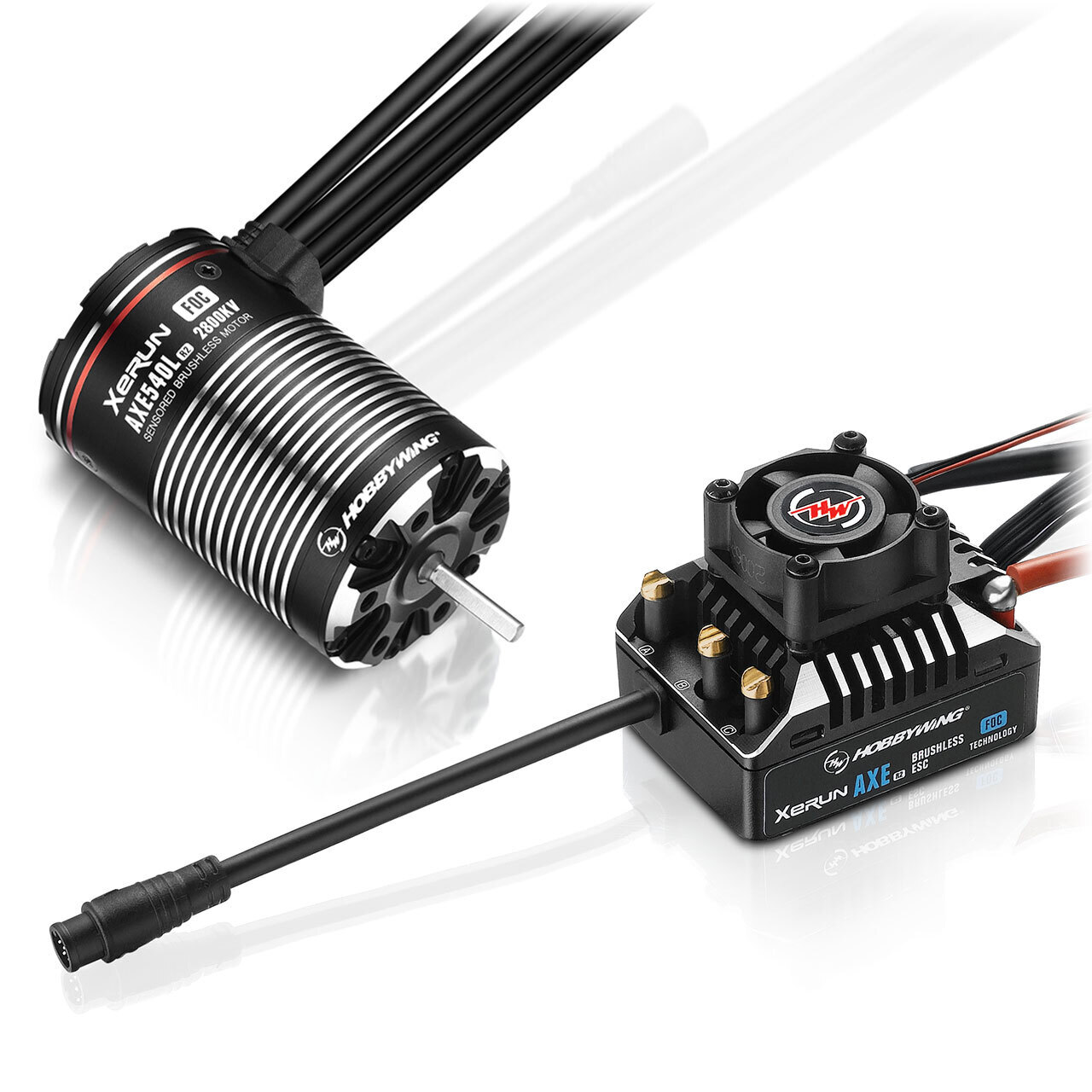

COMBO-XERUN AXE540L R2-2800KV-FOC System
$405.00
RRP $406.20
SAVE $1.20 (0%)
Features
- Field-Oriented Control for Super Linearity & High Torque & Extreme Silence
- Chip-type magnetic encoder guarantees consistency between three phases’ signals and outputs the precise rotor position
- Polarity Protection to solve the problem of using incorrect wires
- Waterproof and dust-proof design (*IP67 standards)
- Intelligent torque output & speed closed-loop control for easy control and consistent motor RPM
- The adjustable drag brake & drag brake rate control (maximum 200%)
- Unprecedented parking capacity on slopes, with no jerky stops
- Read and update ESC firmware via smartphone
- Incorporates Staggered Pole Technology for zero cogging effect & torque ripping.
- Sensor harness provides firm connection between motor & ESC and waterproofs sensor ports
- Advanced Electronic Switch features a waterproof, dust-proof & shock-resistant design
- Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent
Specifications
ESC
- Brushless: Yes
- Cont/Peak Current: 80A/480A
- Motor Compatibility: Xerun AXE R2 Series
- Applications: 1/10th Rock Crawler
- BEC Output: 6V/7.4V Switchable, Continuous Current of 6A
- Connectors: Input/Output Ends: No Connectors
- Size/Weight: 47.4(L)x36.2(W)x26.5(H)mm/ 108g (Included input wires)
- ESC Programming: iOS or Android smart phone (installed with the HW link app)
Motor
- Brushless: Yes
- KV: 2800KV
- LiPos: 2-3S
- Resistance: 12.7
- No-load Current: 3.6A
- Motor Diameter Length: 36/57.8mm (1.42/2.28")
- Shaft Diameter Length: 3.175/60mm (0.125/0.63")
- Poles: 4
- Weight: 234g
Included items
| Description | QTY |
|---|---|
| AXE R2 FOC Sensored Brushless ESC | 1 |
| AXE 540L R2-2800KV FOC Sensored Brushless Motor | 1 |
Note
- Xerun AXE series is a closed system: AXE ESC's work exclusively with Xerun AXE brushless motors
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Max Voltage: | 11.1 |
| Continuous Amps: | 80 |
| Battery Connector: | Bare Wire |
| LiPo Cut-off: | Yes |
| Programmable: | Yes |
| Waterproof Design: | Yes |
| Cooling Method: | Air |
| BEC Voltage: | 6v,7.2v |
| Dual Motor: | No |
| Motor | |
|---|---|
| Motor Type: | Brushless |
| Can Length (mm): | 57.8 |
| Can Diameter (mm): | 36 |
| KV (RPM/V): | 2800 |
| Shaft Diameter (mm): | 3.175 (1/8") |
(HW38020313)
| SKU | HW38020313 |
| Barcode # | 6938994416351 |
| Brand | HOBBYWING |
