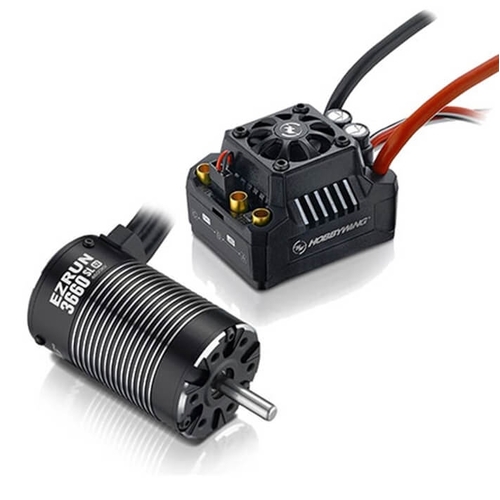

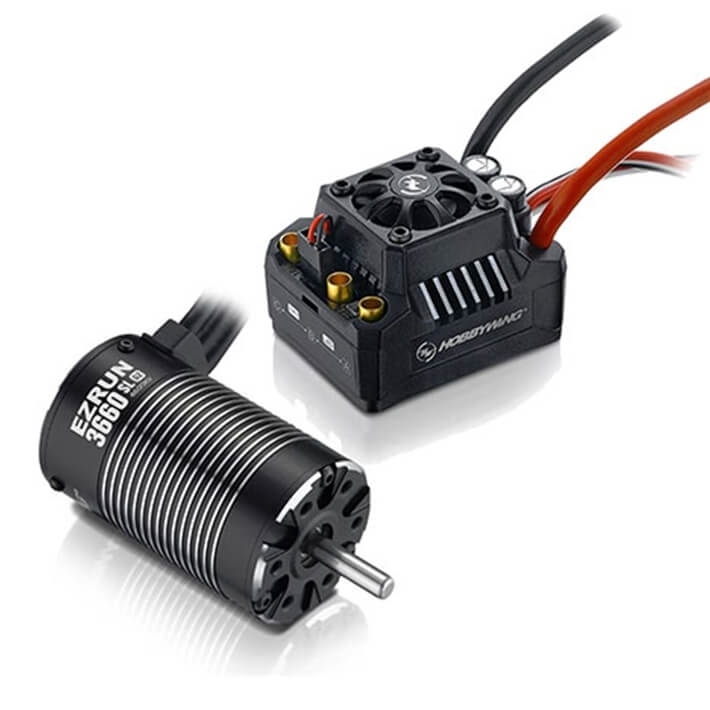

HOBBYWING Max10 Combo W/Sct3660Sl 3200Kv Motor

The MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc. Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian. The user will have the choice of adusting the ESC parameters as per his perference and ability.

The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.

Hobbywing EzRun MAX10 SCT Features:

High Reliability & Durability
Great Flexibility & Versatility
Advanced and Secure Electronic Switch
Applicable to All Weather Conditions
Innovative Filter Capacitor Thermal Protection
Regular Firmware Updates Free of Charge

Spec Check:

Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Yes
Cont./Peak Current: 120A/760A
Input: 2-4S LiPo/6-12 Cells NiMH
BEC Output: Switch Mode:6V/7.4V,3A
Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
Output Wires: Black-12AWG-200mm*3
Input Connectors: No
Output Connecotors: 4.0 Bullet Connectors (Female)
Fan Size: 25.0x25.0x10.0mm
Fan Voltage Range: 5-7.4V
WiFi Module: Supported
Program Port: FAN/Program Port
Size: 49.0x39.5x34.7mm
Weight: 105g

The HobbyWing EzRun 3660 G2 motor features an Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented). It has low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10/Max10 SCT ESC.

HobbyWing EzRun 3660 G2 3200KV SL Motor Features:

Innovative 4-pole-8-magnet "staggered pole" rotor
Built-in temperature sensor and sensor port
O-ring seal fitted between the front end bell and motor case
Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
CNC machined aluminium housing, high purity copper windings and advanced rotor structure
Rebuild-able design for easy routine maintenance

Spec Check:
