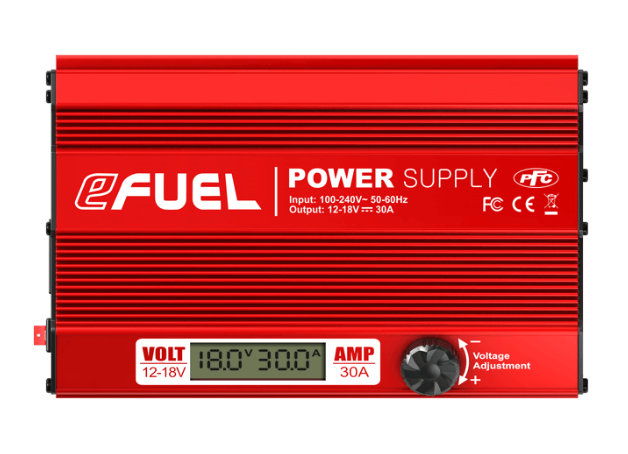

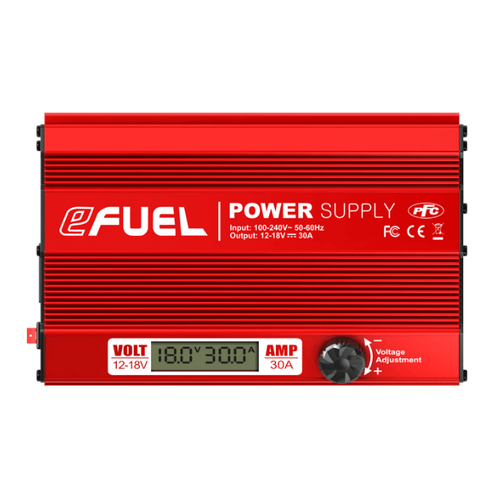

SKYRC E-Fuel 30A Switch Dc Power Supply Rcm - SK-200013

Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.


FEATURES

* Two DC power outputs, up to 30 amperes
* Output voltage adjustable 12-18V
* Large LCD indicates voltage and current amperes output
* Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
* Smart cooling fan
* Over temperature protection
* Over loading protection
* Short circuit protection

Voltage.....................................100-240V AC
Input AC Frequency..................................50-60Hz
Output Voltage................................12-18V DC±0.5V
Output Current....................................30A±1A
Current Overload Protection............................=31A 500MS
Input Fuse................................... 10A Fuse
LCD Display..............................Voltage Precision ±0.3V
Output Voltage Ripple.................................< 150mV
Power Efficiency....................................89%
Power Factor......................................> 0.98
Over Temperature Protection..............................<65?
Cooling Method..................................Cooling Fan
Operating Temperature.................................0-40?
Operating Humidity...................................0-90%
Dimensions (L*W*H).............................218x139x59.5mm
Net weight.......................................1.62kg

(SK-200013)

SKU SK-200013
Barcode # 6930460000941
Brand SKYRC
