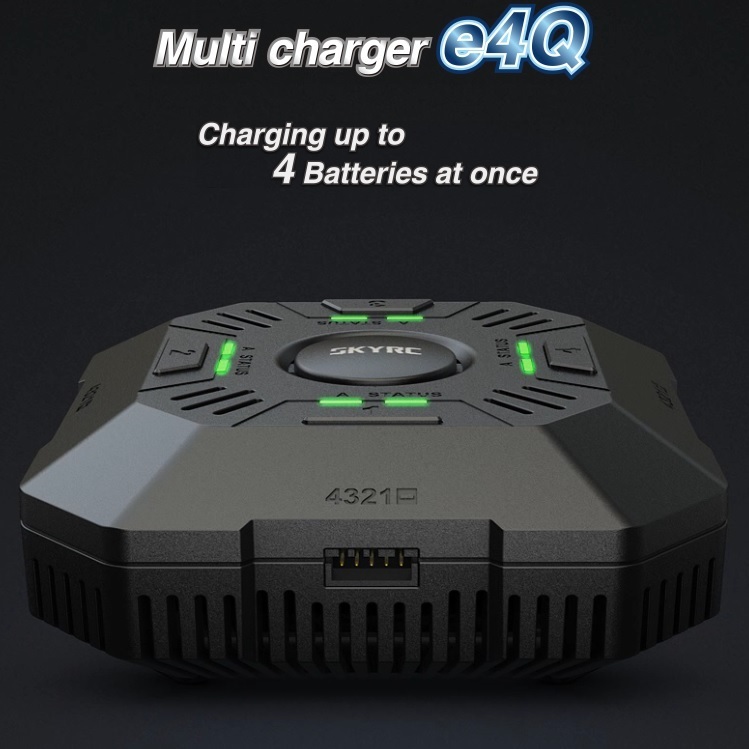

SKYRC E4Q Dc Quattro Charger (2-4S Lipo) - SK-100140

SKYRC E4Q 2-4S Multi Charger SK-100140 (Charging up to 4 batteries)

Size and Weight

Dimension：128x128x50.5mm
Net Weight：280g

Buttons And Port

The e4Q multi-function charger uses four completely independent but identical circuits with a power output of 50W per power. It is designed for charging 2-4 LiPo batteries. Insert the battery into the right connector of each port, charge The appliance will also charge 4 battery times. The charging current can be adjusted by pressing the button 2A / 3A / 5A The charging capacity can show the charging current in the LED indicator through the color change

LED light

LED light charging current display

The first three-color LED lights represent Ampere (A)

Green light(Charging current is 2A)

Yellow light(Charging current is 3A)

Red light(Charging current is 5A)

The second tri-color LED light represent capacity (%)
LED light standby status indication:Not bright

LED light charging instructions:According to the power, the red light to the green light,And do breathing instructions

LED Light charge finished indication：Accompanied by the sound of the alarm, after 5 flashes,LED glows constant green

Includes/Requires:

Includes:
1 x charger
