Body, Wheelie bar, Wheels & Tires

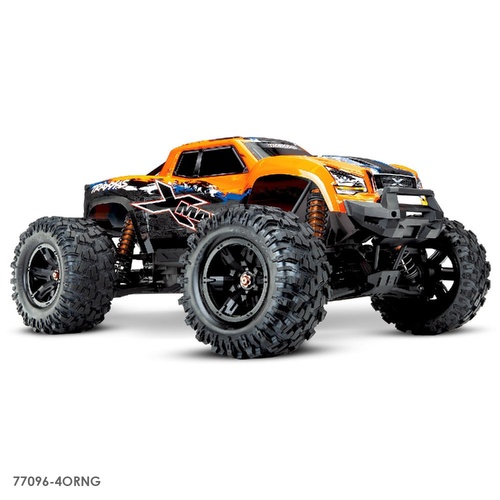

The Traxxas X-Maxx 1/5 8S Monster Truck with belted tires is an absolute beast of an RC vehicle, designed to conquer the most extreme terrain with its mammoth size and unrelenting power. Featuring a clipless body mounting system, the X-Maxx allows for easy removal and installation of the reinforced body, which is further enhanced with a protective cage to minimize flex and external skids for strategic protection during intense bashing sessions. The integrated nerf bars provide additional side impact resistance, ensuring durability and longevity even in the most demanding conditions. Paired with the specifically formulated 8s rubber compound and large, dual-diameter wheels, the belted Sledgehammer tires offer exceptional grip and durability for high-speed runs and aggressive off-road manoeuvres.

Chassis, Suspension & Drivetrain

Built on a robust chassis with a full-metal driveline, the X-Maxx boasts exceptional strength and durability to withstand the rigors of extreme bashing. The suspension system is engineered to optimize suspension travel and steering angles, with all critical suspension points featuring double shear strength for added reliability. The GTX shocks with machined aluminium threaded bodies and extra-large bore capacity ensure smooth and consistent damping over rough terrain, while the fully sealed bearings used in exposed locations provide long-lasting performance with minimal maintenance requirements. The drivetrain features all-metal gears and CVDs, along with Traxxas' Torque-Biasing Centre Drive unit for maximum wheels-up punch and unrelenting acceleration.

Electronics

Equipped with the Velineon VXL-8s Brushless Power System, the X-Maxx delivers jaw-dropping acceleration and speeds of over 50mph, thanks to its powerful Velineon 1200XL Brushless Motor and VXL-8s Waterproof Electronic Speed Control. The built-in cooling fan and machined heat sinks ensure efficient heat dissipation during high-speed runs, while the real-time telemetry via Traxxas Link provides valuable performance data to optimize the driving experience. The Traxxas Stability Management (TSM) helps prevent spinouts and loss of control by adjusting from off to 100% assistance from the transmitter, offering unparalleled stability and control for drivers of all skill levels. Additionally, the TQi 2.4 GHz High Output Radio System with Traxxas Link-enabled allows for easy customization and adjustment of steering and throttle parameters, ensuring a personalized driving experience tailored to individual preferences.

Features

• High Speed 8S Rated Belted Sledgehammer Tires
• Proven Rigid Chassis Structure
• Tough All HD Metal gears and CVDs
• Potent VXL-8S Brushless Power System
• Anodized Aluminium GTX Shocks
• Clipless Body Mounting
• Aluminium Motor Heatsink with Dual Fans
• Traxxas Stability Management (TSM)
• Fully machined aluminium stub axles and centre driveshaft

Specifications

• Scale: 1/5
• Length: 30.67 inches (779 mm)
• Width: 21.3 inches (540 mm)
• Height: 13.79 inches (350 mm)
• Wheelbase: 18.92 inches (480 mm)
• Ground Clearance: 4 inches (102 mm)
• Weight: 19.1 pounds (8.66kg)
• Wheel Hex Size: 24mm splined hex
• 24mm splined hex
• Power Source: Electric
• Input Voltage: 6S-8S (22.2-29.6V)
  Completion Level    Ready-To-Run
• Up to 50+ MPH on 8S LiPo with the included optional spur gear

Includes

• (1) Traxxas X-Maxx 8S Monster Truck
• (1) Product Manual

Needed To Complete

• (2) Traxxas 2x4S LiPo Battery with ID Connector
• (1) Compatible Traxxas Charger
• (4) AA Batteries for Transmitter
