Compact and capable carry light on the field

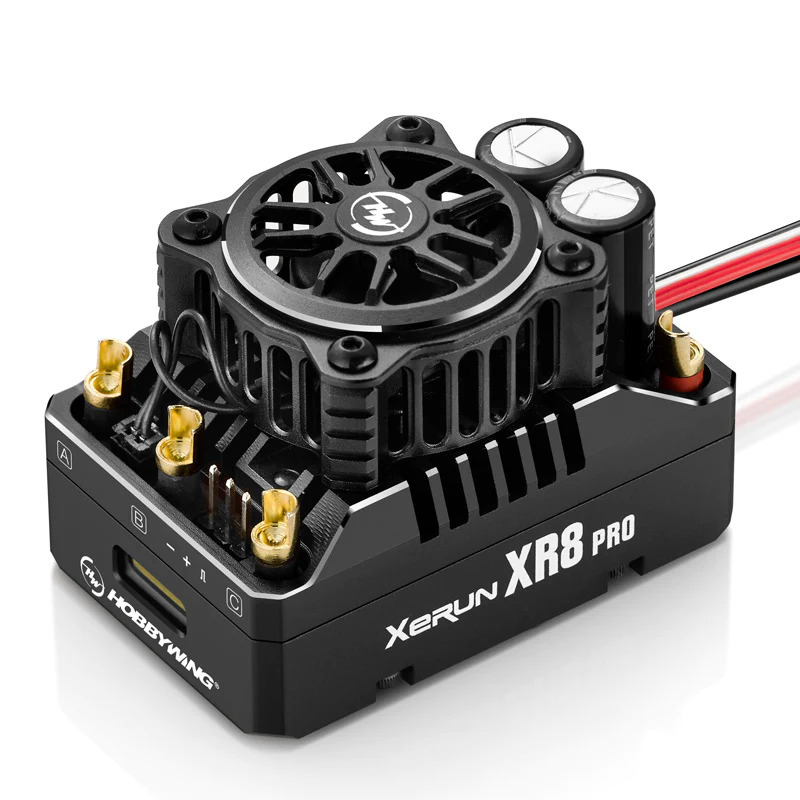

The new XR8 Pro G3 ESC is 1.3mm shorter, and 5.3mm narrower compared to its predecessor. The overall footprint is reduced by approximately 15%.
The all-new fully sensored XR8 PRO G3 ESC meets the needs of high-end 8th scale racing applications with its strong explosive power, ultra large output power(200a), while having excellent low-speed linearity.

Dual Brake Mode

The innovative closed-loop torque brake control mode is also known as the disc brake mode. It completely solves the problem of non-linear force caused by the influence of vehicle speed on traditional braking methods. It enables linear output of braking force accurately, similar to the effect of real car disc brakes. The disc brake mode supports the adjustment of the curvature of the braking force and force distribution of the front and rear sections of the brakes. At the same time, the traditional braking mode is retained to take into account the driver's control habits.

Cooling Effeciency

Excellent hardware design combined with innovative smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature. Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 15°C, and the ESC is stable and reliable.

Excellent hardware design combined with innovative smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature. Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 15°C, and the ESC is stable and reliable.

Frameless fan, efficient and durable

The frameless fan blade is designed with the use of specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand and other foreign objects.

Intelligent fan start/stop, noise reduction and power saving

The fan of the ESC does not work when the temperature is low. The fan will automatically turn on when the temperature rises to the pre-set value. The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Advanced Boost & Turbo Timing Technology

The XR8 Pro G3 ESC performs the best when it is paired with the recommended HOBBYWING motor. It inherits the same Turbo Timing technology used on the XR10 Pro series used in 1/10th On-Road and Off-Road competition.This ESC is able to support up to 48 degrees of Boost and Turbo Timing. There is a 50% increase in performance and is only recommended to pair with the new HOBBYWING 4268/4274 G3 motors.

Built-in reverse polarity protection circuit, reinforced protection

The ESC is reverse polarity protected. In an event when a user makes a mistake by reversing the polarity, the ESC will not be broken.

Real-time data recording function, easy to obtain power running status

After connecting the OTA module box, turn on real-time data recording function to access the operating status.

Capacitor Thermal Protection

Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Note: If the overheating protection of the ESC is off, and it is used on a flat road vehicle, please add a capacitor pack, otherwise the capacitor may be overheated and damaged!

Superior Dustproof Protection

The ESC is IP5X rated. It has a superior dustproof protection to protect the ESC in all types of environments. In addition, the ESC is equipped with a small protective cover for better fan protection.

Custom ultra-soft 11AWG silicone wire

The ultra-soft 11AWG silicone wire is specially chosen for this product. The wire is ultra-flexible and low in resistance, making it the perfect combination to for your electronics.

Bottomline

• The product features three common profiles that are suitable for all 1/8 Racing applications, allowing users to select and use them instantly. These profiles include Zero timing-Blinky mode, 1/8 Off-Road Racing mode, and 1/8 On-Road Racing mode.
• XR8 PRO G3 ESC offers 32 built-in adjustable parameters, providing flexibility to meet various power requirements. These parameters can be easily imported and exported, facilitating communication and learning among drivers.
• The ESC supports firmware upgrades, which can be done using the multi-function LCD G2 programming box, OTA Programmer, or Tunalyzer (available for purchase). This allows users to enjoy the latest functions and enhancements.
• With the built-in switch mode BEC, the ESC provides a maximum output of 12A and allows adjustable voltage options of 6V or 7.4V. This flexibility is ideal for usage with servos and other devices that require different voltage levels.
• The ESC includes a built-in reverse connection protection circuit, ensuring the ESC is protected from damage in case of reverse connection.
• The ESC features a data logging function, allowing users to view various running data through the HW LINK app using the OTA Bluetooth module. This provides valuable insights and analysis for performance evaluation.

Features
